Vanquish VFD Twin Transmission Machined Transfer Case Metal Gear Set VPS10210

VFD Machined Transfer Case Gear Set. This gear set replaces all sintered gears inside of the transfer case of the VFD Twin transmission. These are heavy duty machined steel 48P gears that will work in any VFD Twin Transmission. The idler gear assembly is converted to a one piece unit that reduces gear play and increases strength.

Compatibility

• VS4-10 Phoenix Portal VPS09007
• VFD Twin Transmission Kit VPS10200

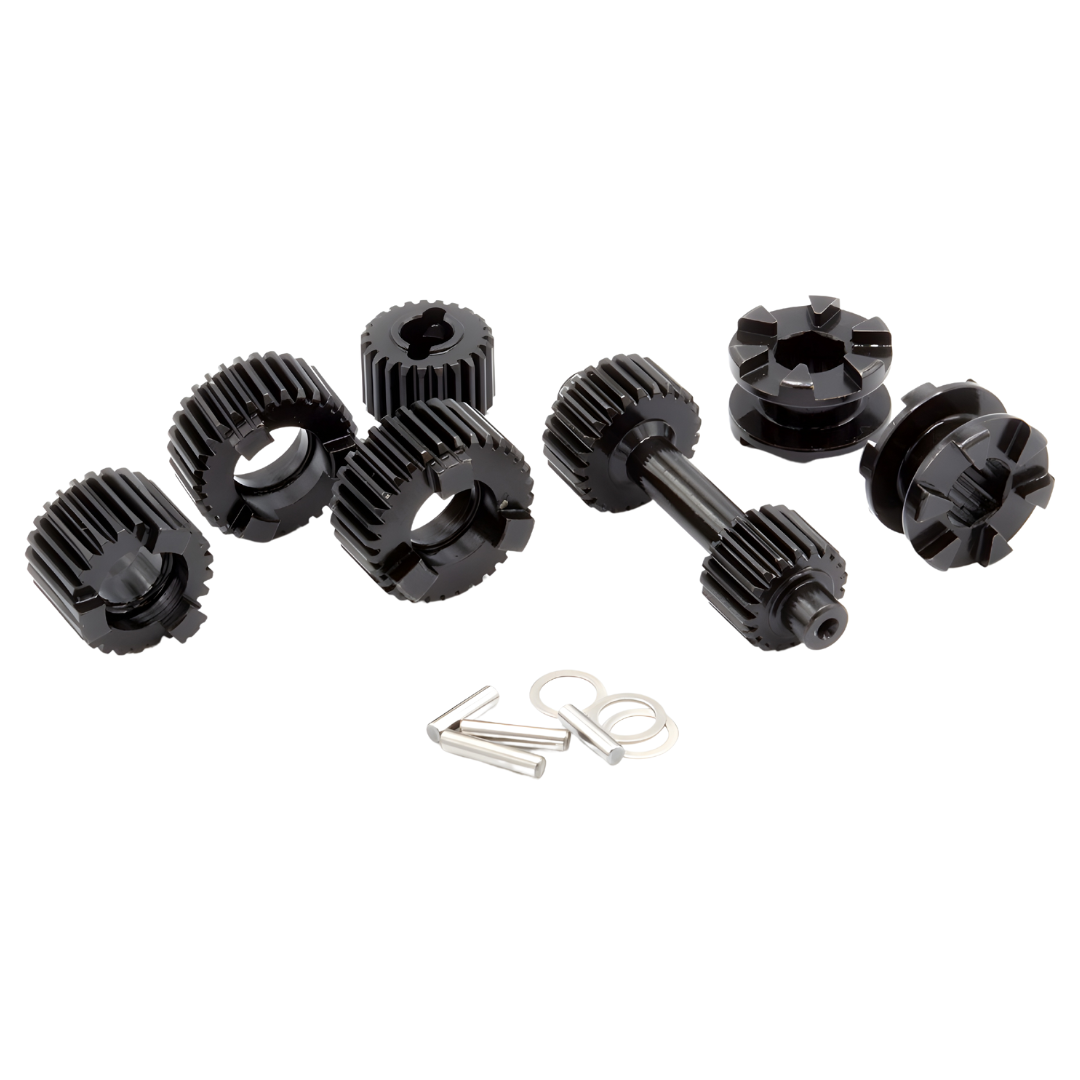

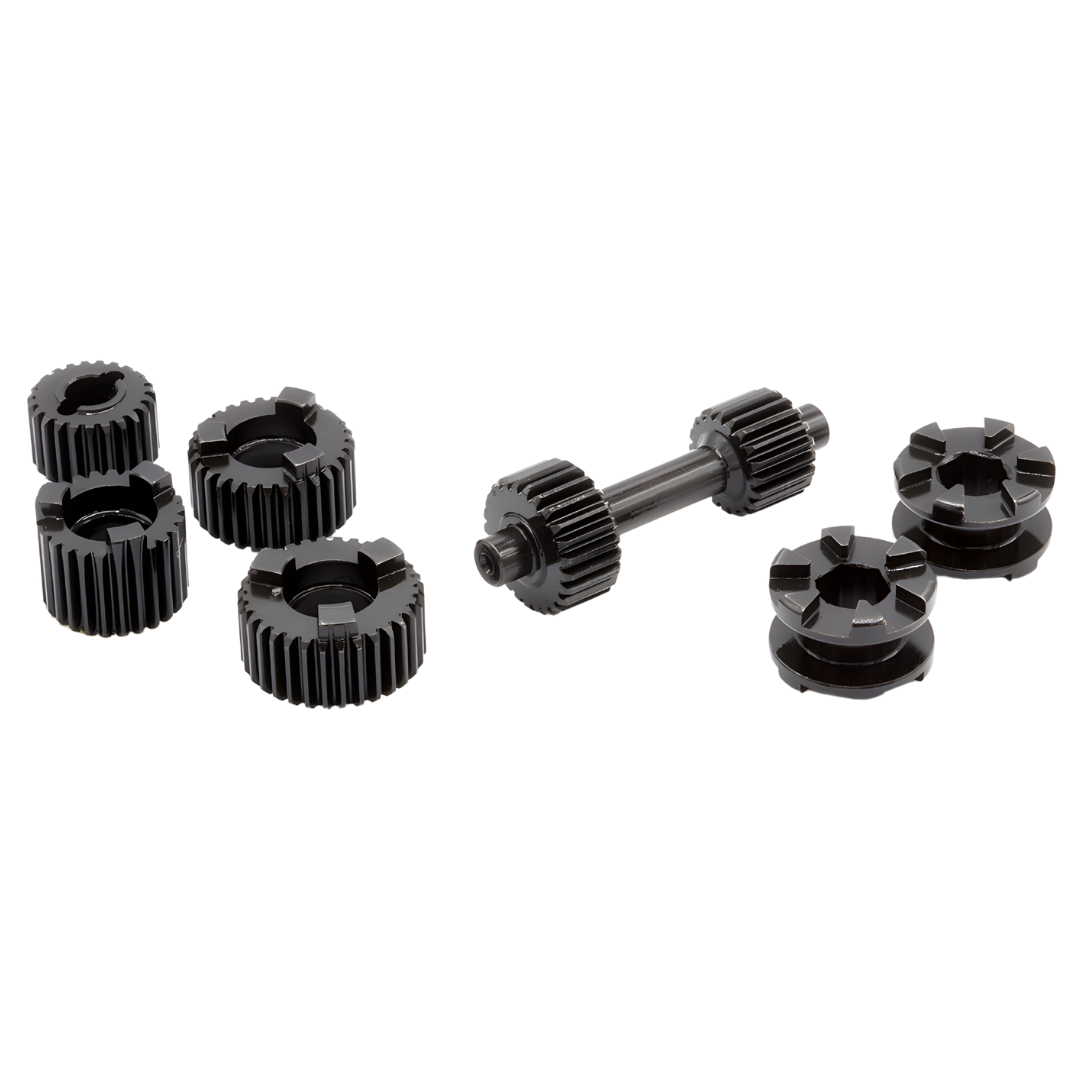

Includes

• 1pcs 23t 48p Input Gear
• 1pcs 32t 48p Rear Drive gear
• 1pcs 30t 48p Standard OD Front Drive Gear
• 1pcs 25t 48p High OD Front Drive Gear
• 1pcs 20t/25t 48p Idler Gear Shaft
• 2pcs Slide Dogs
• Pins
• Shims

Note: Refer to VPS09007 or VPS10200 Manual for install. Carefully note tooth count locations and size of gears. 32T is the largest and placed on the rear output for dig. 30T is at the front of the front output. 25T is at the back of the front output.
