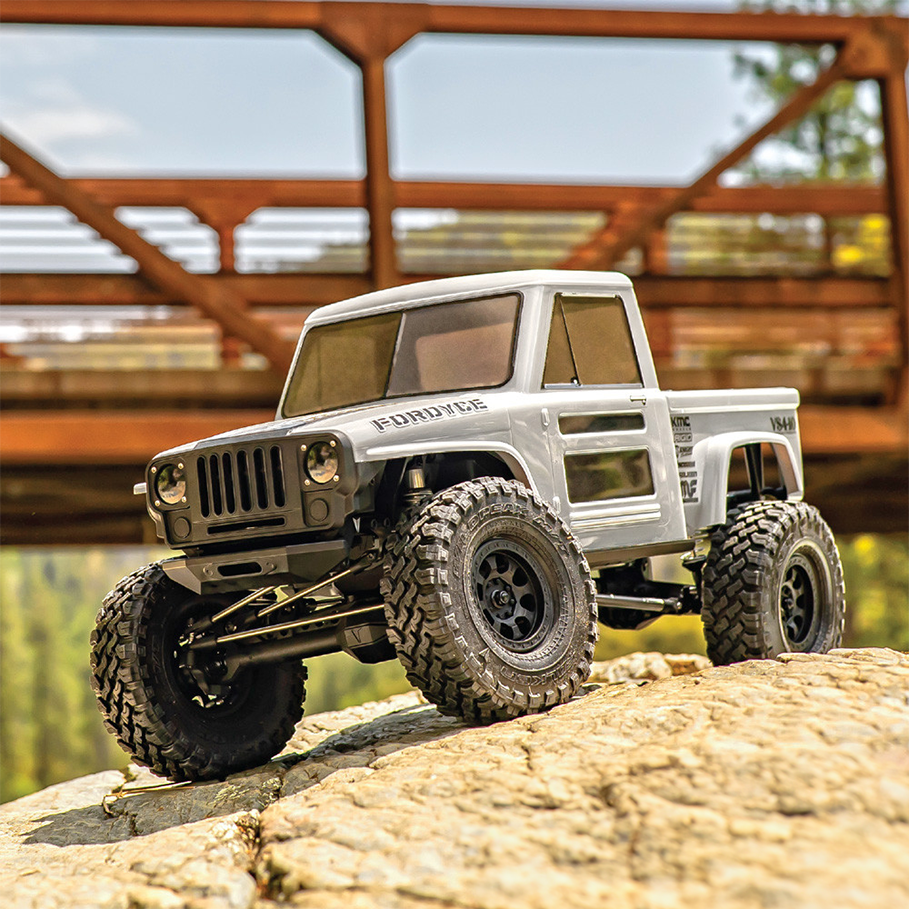

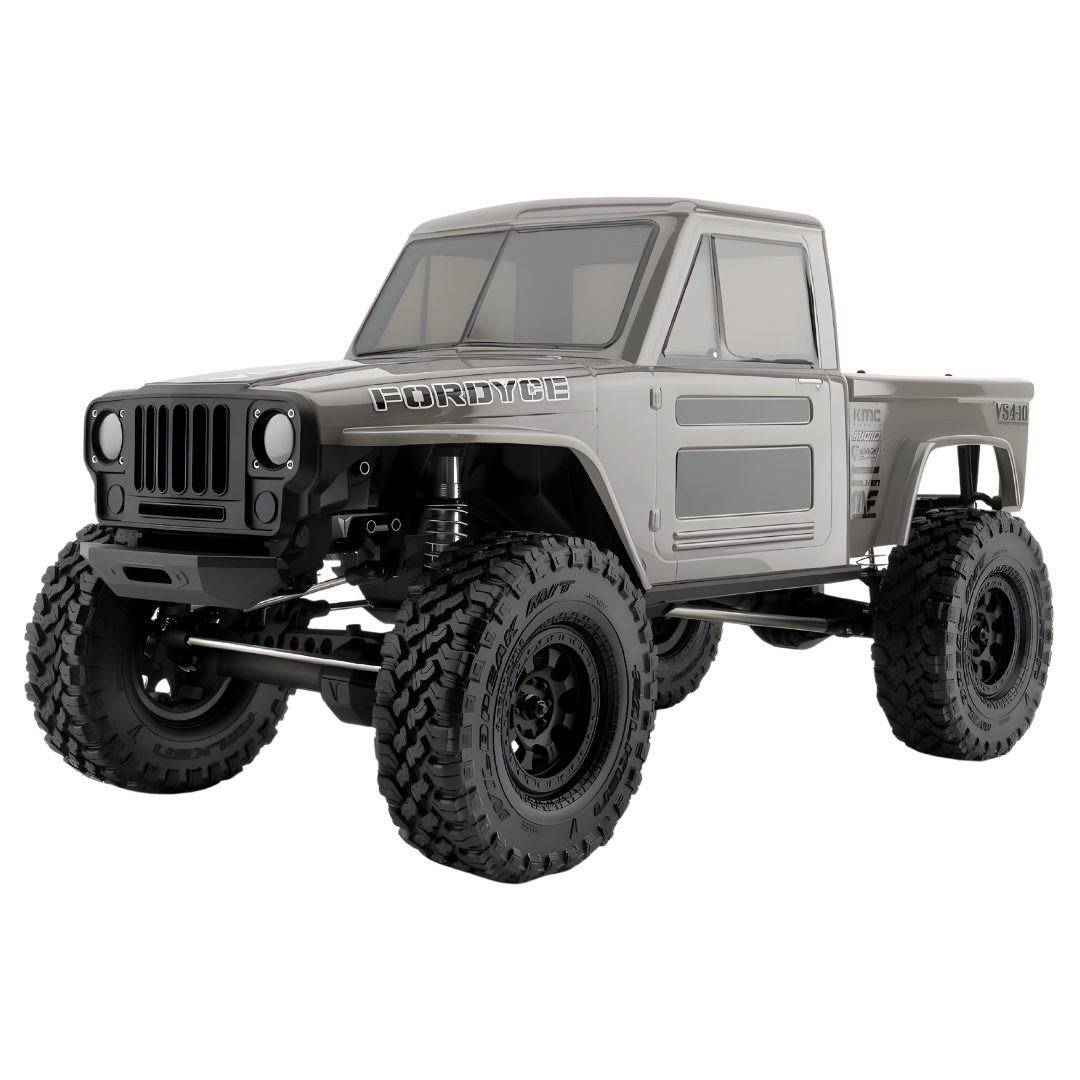

Vanquish VS4-10 Fordyce RTR 1/10th Scale 4x4 RC Rock Crawler Grey VPS09012B

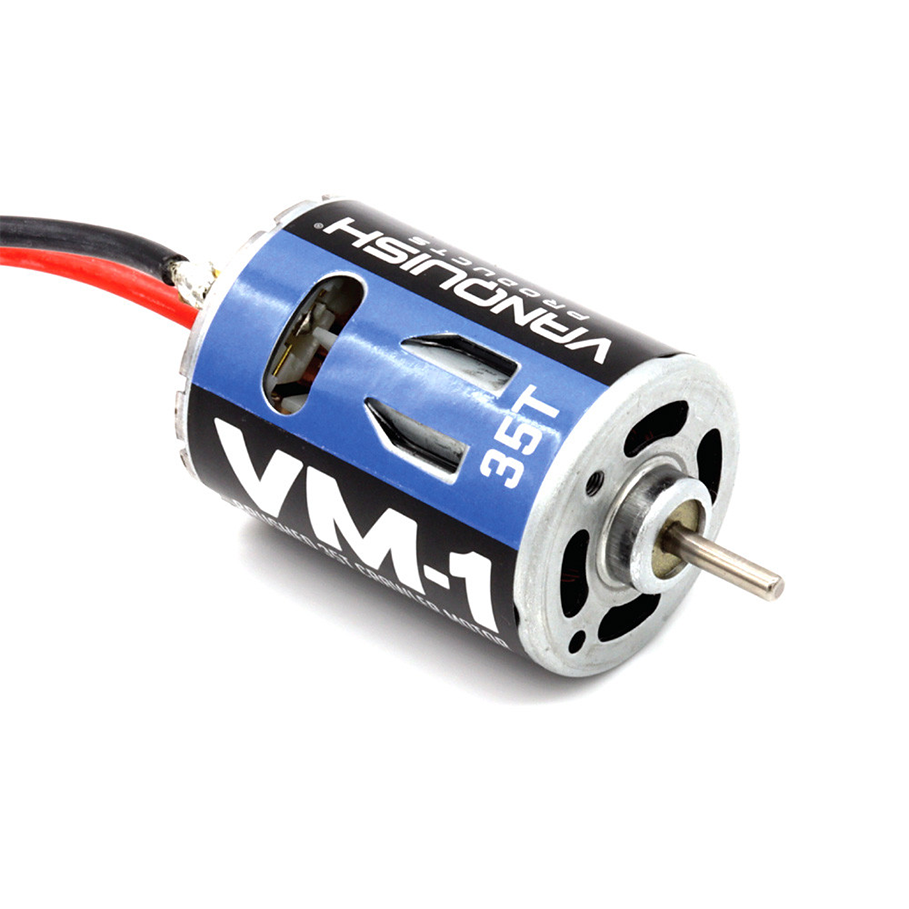

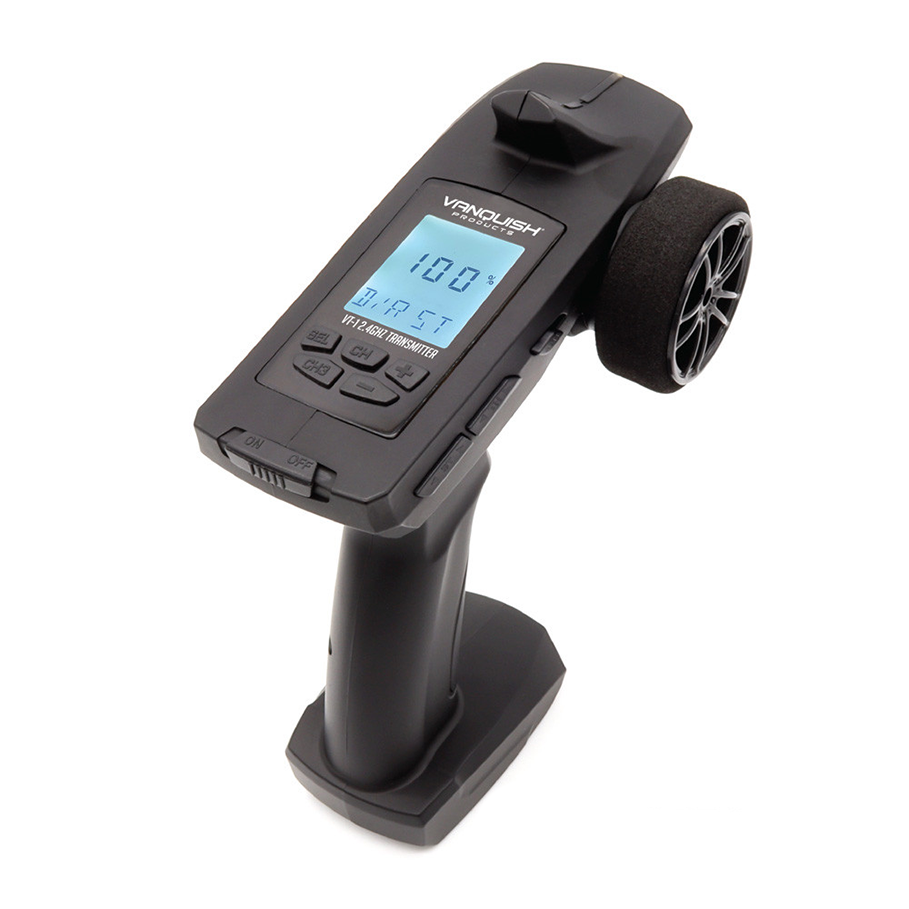

The VS4-10 Fordyce RTR is a retro inspired truck with the modern rugged durability that Vanquish Products is known for. Features the VFD Spec transmission, F10 Straight Axles, and Fordyce body with bedsides. Included is a full function digital 4 Channel VT-1 Transmitter with multiple model memory and end point adjustment, making the VS4-10 Fordyce RTR ready to be equipped with optional radio controlled accessories such as a winch, light controller or dig. Out of the box the VFD Spec comes with 6.5% OD powered by a 35T VM-1 Motor and VE-1 3S capable ESC. High quality stainless steel links are used throughout the Fordyce’s suspension, including larger diameter lower links for extra mass down low and a high clearance front tie rod that removes the bends from the link. The F10 straight axles are equipped with a one piece ring gear and spool paired with machined pinion gear. The chromoly universal axle shafts allow for 49 degrees of steering. Full ball bearings, metal transmission gears and 32P spur / pinion provide smooth and reliable performance when tackling the toughest terrain.

Features

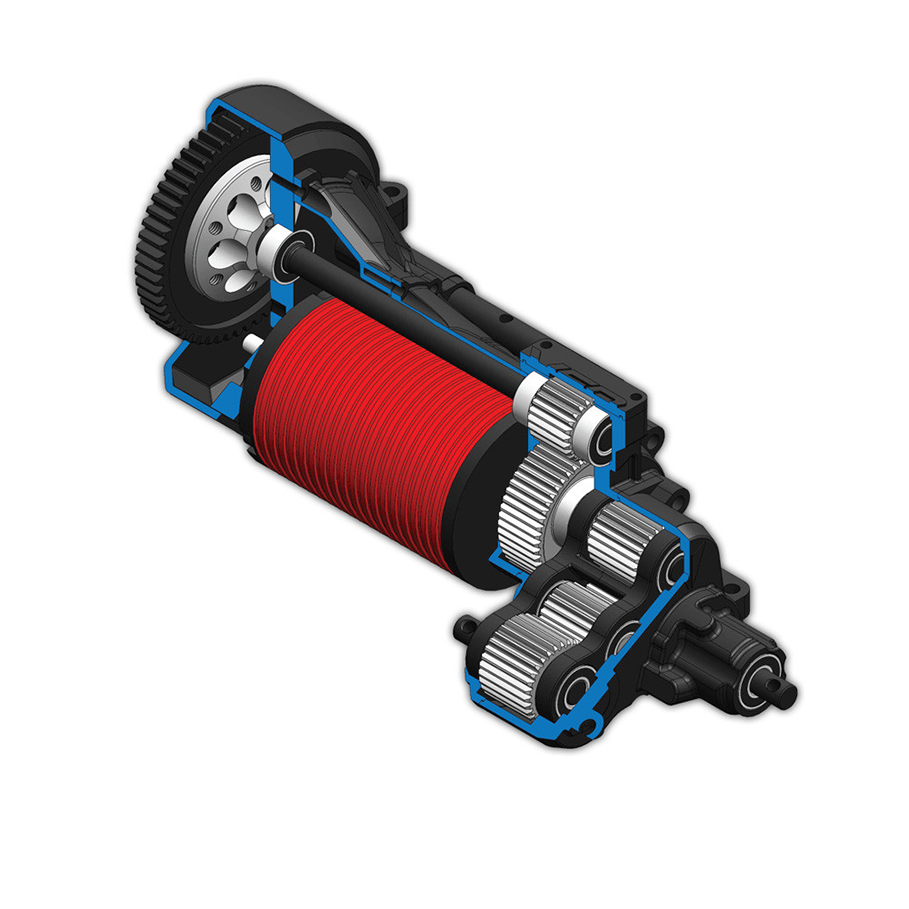

• VFD Spec Transmission w/ 6.5% Overdrive
• F10 Straight Axles
• Offset Pumpkin Front Axle
• Centered Pumpkin Rear Axle
• One-Piece Ring Gear and Spool
• Machined Pinion Gears
• Universal-style front axle shafts
• Stainless Steel Links
• 25T 20MM Metal Servo Horn
• Machined Aluminum Panhard Mount
• Double Shear Shock Mounts
• Aluminum machined 12mm Hexes
• ISD10 Driveshafts
• 90mm S8E Shocks with +5 Rod Ends, Bleeder cap and clamping spring cup retainers
• Hidden body clip system

Specifications

• 1/10th Scale

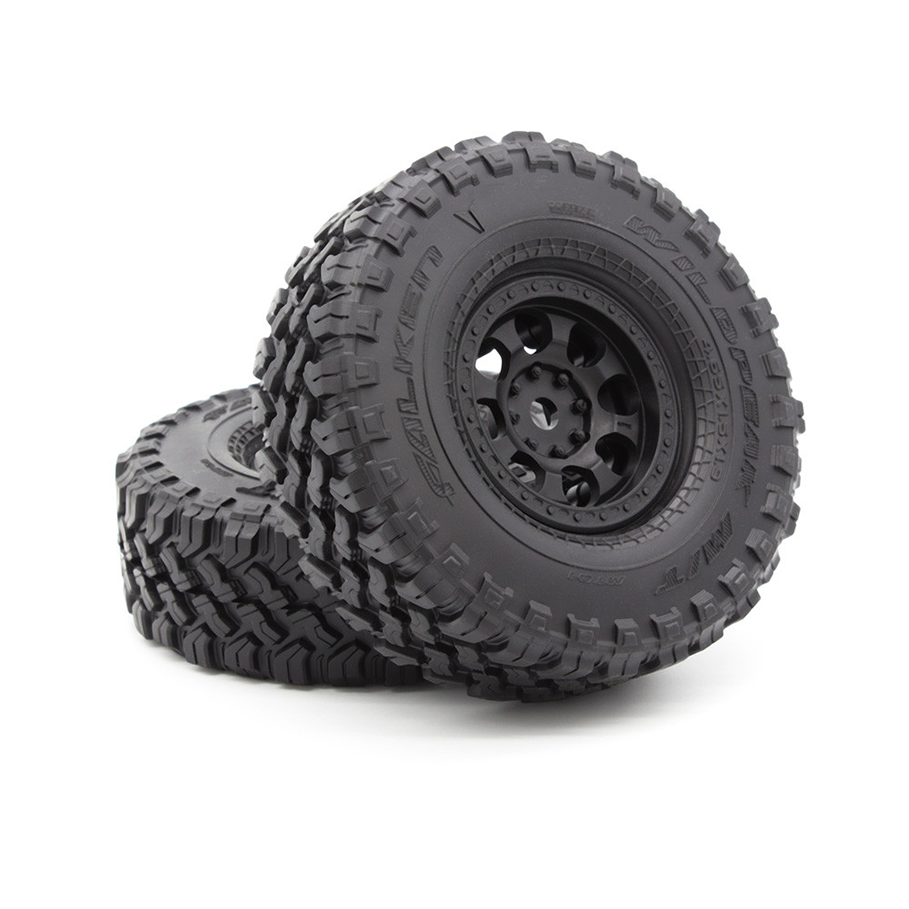

• Falken Wildpeak RED Compound 4.65”x 1.9” tires
• Overall Width: 242mm (9.53")
• Overall height: 242mm (9.53")
• Wheelbase: 313mm (12.3")
• 3.75:1 Axle Gear Ratio
• 13T/56T Pinion/Spur
• Internal Trans Ratio: Front 2.95 / Rear 3.15
• Overall Gear Ratio: Front 41.3 / Rear 44.0
• Overdrive Percentage: 6.5%
• RTR weight (without battery): 5.9lbs (2.7kg)
• Front and Rear axle width pin to pin: 182mm (7.17")

Requires

• 2-3S LiPo Battery or 6 cell NiMh (XT60 Plug)
• Compatible battery charger for selected battery (XT60 Plug)
